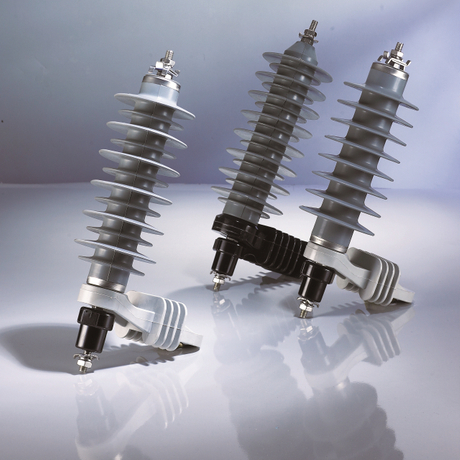

Metal Oxide 30kv Arrester pro Outdoor

depictio producti

Surge Arrester Series

Generalis

1. Ratings: 0.22~500KV (porcelain), 0.22~220KV(compositum)

2. Applicatio: ad tutelam potentiae transmissionis & distributionis systematis e nimia intentione.

3. Features:


1）Silicone polymer habitationem compositam metalli oxydatum salo comprehensorem et fictilem habitationem metalli oxydorum fluctuum comprehensores praesto sunt.

2° Facilis institutionem et sustentationem.

3） Facultas obsignandi bonum ad certam operationem obtinendam.

4） Praesidio et firmitas comprehensoris aestus vehementer aucta sunt.

Opus Condition

1. Ambiens temperies aeris: -40℃ ~+40℃ ;

2. Altitude：<=2000m;

3. Frequentia: 48Hz~62Hz;

4. Potestas frequentia intentione applicata inter terminales chirurgiae comprehensor non debet excedere intentionem continuam operantem surgentis arretricis;

5. Terrae motus intensio est minor quam 8 gradus;

6. Maximilianus.Ventus celeritas est 35m/s.

Techical Parameter principalis

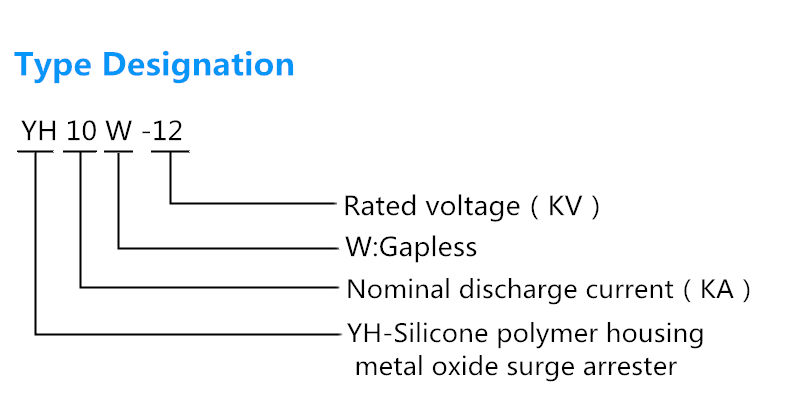

1. Metal oxydatum Polymerus Praesent (Gapless) type Surge Arrester pro AC System (5kA series)


Exemplar Ratum intentione (kVr.ms) Continua operating intentione (KVr.ms） Levatio motus residua voltage sub nominis missione current (<=KVp) Linea missio classis Spatium Creepage (mm) 2ms quadratum fluctus impetus current resistit (A) 4/10μhigh vena impetus sustinet (KAp)
YH-5W-6 6 5.1 18
320 150 65
YH-5W-9 9 7.65 27
430 150 65
YH-5W-12 12 10.2 36
430 150 65
YH-5W-15 15 12.75 45
530 150 65
YH-5W-18 18

15.3

 54
530 150 65
YH-5W-21 21 16.8 63
640 150 65
YH-5W-24 24 19.2 72
640 150 65
YH-5W-27 27 21.6 81
740 150 65
YH-5W-30 30 24 90
890 150 65
YH-5W-33 33 26.4 99
890 150 65
YH-5W-36 36 28.8 108
1115 150 65

2. Metal oxydatum Polymerus Praesent (Gapless) type Surge Arrester pro AC System (10KA series)

Exemplar Ratum intentione (kVr.ms) Continua operating intentione (KVr.ms） Levatio motus residua voltage sub nominis missione current (<=KVp) Linea missio classis Spatium Creepage (mm) 2ms quadratum fluctus impetus current resistit (A) 4/10μhigh vena impetus sustinet (KAp)
YH-10W-6 6 5.1 18 1 320 250 100
YH-10W-9 9 7.65 27 1 430 250 100
YH-10W-12 12 10.2 36 1 430 250 100
YH-10W-15 15 12.75 45 1 530 250 100
YH-10W-18 18 15.3 54 1 530 250 100
YH-10W-21 21 16.8 63 1 640 250 100
YH-10W-24 24 19.2 72 1 740 250 100
YH-10W-27 27 21.6 81 1 740 250 100
YH-10W-30 30 24 90 1 890 250 100
YH-10W-33 33 26.4 99 1 890 250 100
YH-10W-36 36 28.8 108 1 1115 250 100
YH-10W-42 42 33.6 126 2 1260 400 100
YH-10W-48 48 39 139 2 1260 400 100
YH-10W-54 54 42 160 2 1260 400 100
YH-10W-60 60 48 178 2 1465 400 100
YH-10W-66 66 52.8 196 2 1465 400 100
YH-10W-72 72 57 214 2 2255 400 100
YH-10W-84 84 67.2 244 2 2255 400 100
YH-10W-90 90 72.5 249 2 2255 400 100
YH-10W-96 96 75 265 3 3555 800 100
YH-10W-108 108 84 281 3 3555 800 100
YH-10W-120 120 96 300 3 4153 800 100
YH-10W-150 150 120 416 3 5040 800 100
YH-10W-200 200 156 520 3 7110 800 100

3. Metal oxydatum Polymerus Praesent (Gapless) type Surge Arrester pro AC System (20KA series)


Exemplar Ratum intentione (kVr.ms) Continua operating intentione (KVr.ms） Levatio motus residua voltage sub nominis missione current (<=KVp) Linea missio classis Spatium Creepage (mm) 2ms quadratum fluctus impetus current resistit (A) 4/10μhigh vena impetus sustinet (KAp)
YH-20W-108 108 84 281 3 3555 800 100
YH-20W-120 120 96 300 3 4153 800 100
YH-20W-150 150 120 416 3 5040 800 100
YH-20W-200 200 156 520 3 7110 800 100

4. Metallum Oxide Porcelain Praesent (Gapless) type Surge Arrester pro AC System (5KA series)



Exemplar Ratum intentione (kVr.ms) Continua operating intentione (KVr.ms） Levatio motus residua voltage sub nominis missione current (<=KVp) Linea missio classis Spatium Creepage (mm) 2ms quadratum fluctus impetus current resistit (A) 4/10μhigh vena impetus sustinet (KAp)
Y5W-6 6 5.1 18
280 150 65
Y5W-9 9 7.65 27
320 150 65
Y5W-12 12 10.2 36
320 150 65
Y5W-15 15 12.75 45
450 150 65
Y5W-18 18

15.3

 54
450 150 65
Y5W-21 21 16.8 63
450 150 65
Y5W-24 24 19.2 72
510 150 65
Y5W-27 27 21.6 81
510 150 65
Y5W-30 30 24 90
890 150 65
Y5W-33 33 26.4 99
890 150 65
Y5W-36 36 28.8 108
890 150 65

5. Metallum Oxide Polymerus Praesent (Gapless) type Surge Arrester pro AC System (10KA series)


Exemplar Ratum intentione (kVr.ms) Continua operating intentione (KVr.ms） Levatio motus residua voltage sub nominis missione current (<=KVp) Linea missio classis Spatium Creepage (mm) 2ms quadratum fluctus impetus current resistit (A) 4/10μhigh vena impetus sustinet (KAp)
Y10W-6 6 5.1 18 1 280 250 100
Y10W-9 9 7.65 27 1 320 250 100
Y10W-12 12 10.2 36 1 320 250 100
Y10W-15 15 12.75 45 1 450 250 100
Y10W-18 18 15.3 54 1 450 250 100
Y10W-21 21 16.8 63 1 450 250 100
Y10W-24 24 19.2 72 1 510 250 100
Y10W-27 27 21.6 81 1 510 250 100
Y10W-30 30 24 90 1 890 250 100
Y10W-33 33 26.4 99 1 890 250 100
Y10W-36 36 28.8 108 1 890 250 100
Y10W-42 42 33.6 126 2 1256 400 100
Y10W-48 48 39 139 2 1256 400 100
Y10W-54 54 42 160 2 1256 400 100
Y10W-60 60 48 178 2 1440 400 100
Y10W-66 66 52.8 196 2 1440 400 100
Y10W-72 72 57 214 2 1440 400 100
Y10W-84 84 67.2 244 2 2200 400 100
Y10W-90 90 72.5 249 2 2200 400 100
Y10W-96 96 75 265 3 3350 800 100
Y10W-108 108 84 281 3 3350 800 100
Y10W-120 120 96 300 3 3948 800 100
Y10W-150 150 120 416 3 4400 800 100
Y10W-200 200 156 520 3 6700 800 100

Metal Oxide Polymerus Praesent (Gapless) type Surge Arrester pro AC System (20KA series)

Exemplar Ratum intentione (kVr.ms) Continua operating intentione (KVr.ms） Levatio motus residua voltage sub nominis missione current (<=KVp) Linea missio classis Spatium Creepage (mm) 2ms quadratum fluctus impetus current resistit (A) 4/10μhigh vena impetus sustinet (KAp)
Y20W-108 108 84 281 3 3555 800 100
Y20W-120 120 96 300 3 4106 800 100
Y20W-150 150 120 416 3 4400 800 100
Y20W-200 200 156 520 3 6700 800 100
Y20W-444 444 324 1106 4 17052 2000 100
