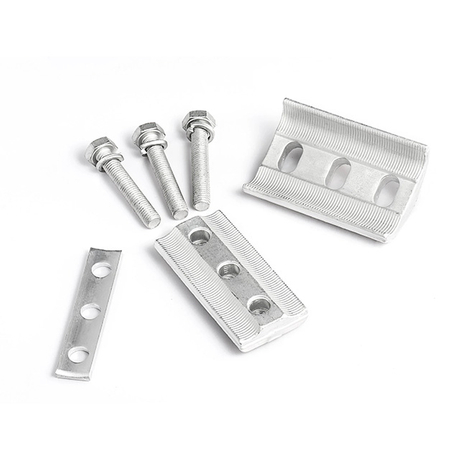

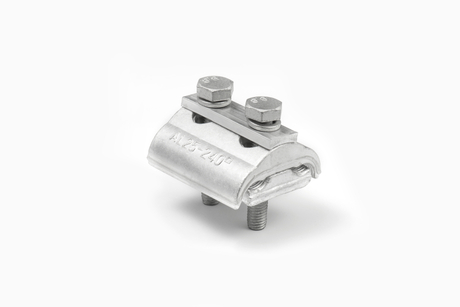

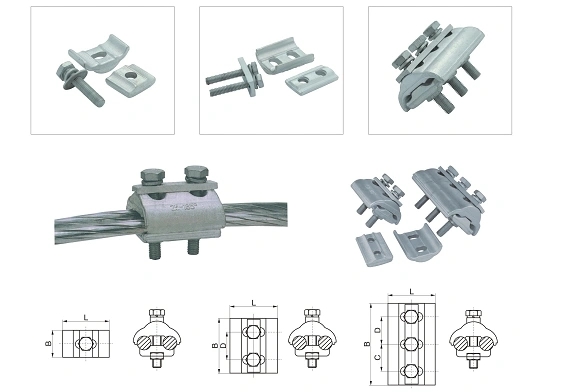

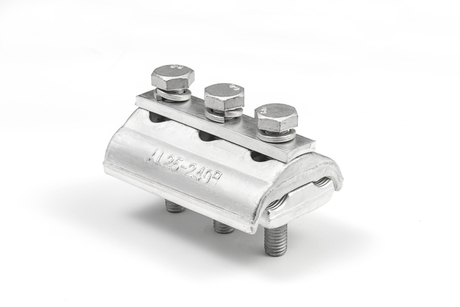

Aluminium Fitting Cable Fibula/ Aluminium Parallel Groove Clamp
- APG
depictio producti
Materia:
Altum robur aluminium mixturae fictis.Curatio superficiei: Bright.
Proprietas uber:
APG adhibitum est conductores connectendi vel ramosi AAC, AAAC vel ACSR supra caput.Forging
Fibulae altae vires gignit.Slotted foramina patitur temperatio variae conductores in singulis
latus.Eius generis test secundum IEC61238-1.
| Exemplar | Conductor Crux-sectioni (mm2) | Repagula |
| APG-A1 | Al 16-70 | 1×M8×40 |
| APG-A2 | Al 16-150 | 1×M8×45 |
| APG-B1 | Al 16-35 | 2×M6×35 |
| APG-B2 | Al 16-70 | 2×M8×45 |
| APG-B3 | Al 16-150 | 2×M8×50 |
| APG-B4 | Al 25-185 | 2×M10×60 |
| APG-C1 | Al 16-70 | 3×M8×45 |
| APG-C2 | Al 16-150 | 3×M8×50 |
| APG-C3 | Al 25-240 | 3×M10×60 |
| APG-C4 | Al 35-300 | 3×M10×70 |
